| Custom HSK Runout Arbor |
- |
- |
- |
465.100
|

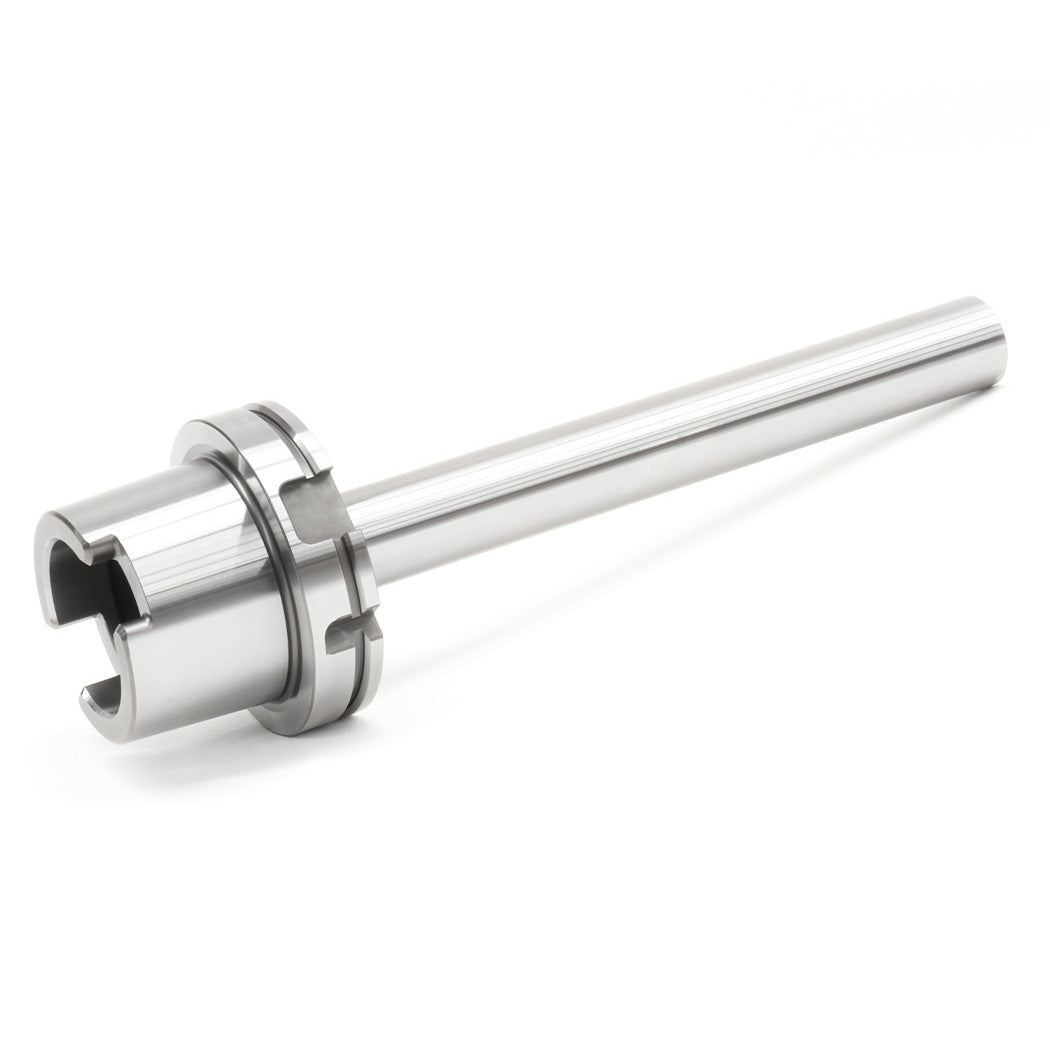

Custom HSK Runout Arbor
Contact us for other lengths, tapers, and other special requirements.
- Lead time is counted after a confirmed approval drawing

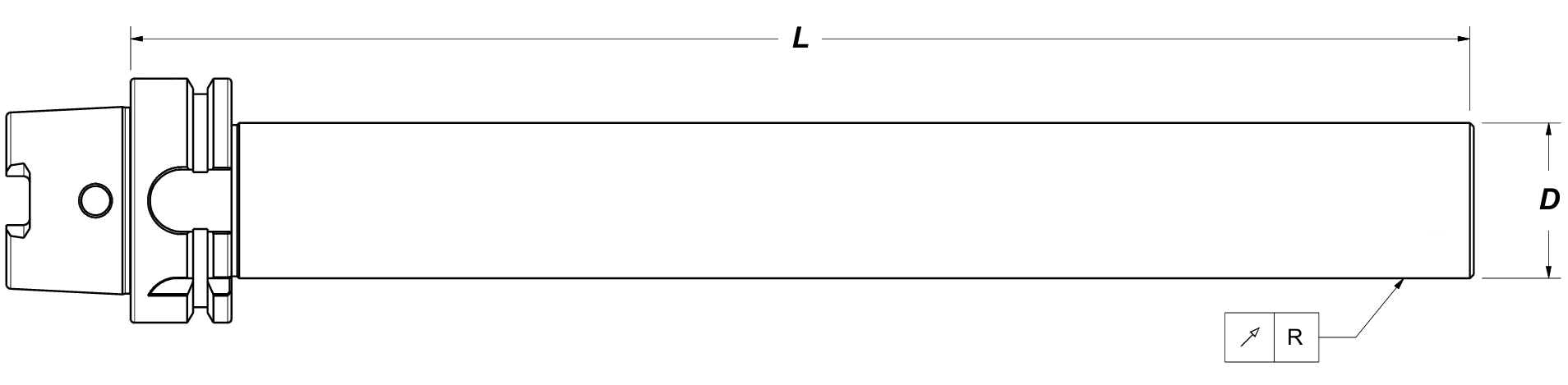

Length (L)
-
Diameter (D)
-
Compatible With Spindles
-
Part Number
465.100
View details
|
| HSK-A/C/E 25 Runout Arbor |
140 mm |
20 mm |
HSK-A 25, HSK-C 25, HSK-E 25 |
465.125.000.000
|
HSK-A/C/E 25 Runout Arbor
A certificate of accuracy is included. Traceable certificates available; contact us for details.
Contact us for other lengths, tapers, and other special requirements.
Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
Length (L)
140 mm
Diameter (D)
20 mm
Compatible With Spindles
HSK-A 25, HSK-C 25, HSK-E 25
Part Number
465.125.000.000
View details
|
| HSK-A/C/E 40 + B/D/F 50 Runout Arbor |
180 mm |
24 mm |
HSK-A 40, HSK-C 40, HSK-E 40 |
465.140.000.000
|
HSK-A/C/E 40 + B/D/F 50 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
180 mm
Diameter (D)
24 mm
Compatible With Spindles
HSK-A 40, HSK-C 40, HSK-E 40
Part Number
465.140.000.000
View details
|
| HSK-A/C/E 50 + B/D/F 63 Runout Arbor |
346 mm |
40 mm |
HSK-A 50, HSK-C 50, HSK-E 50 |
465.150.000.000
|
HSK-A/C/E 50 + B/D/F 63 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
346 mm
Diameter (D)
40 mm
Compatible With Spindles
HSK-A 50, HSK-C 50, HSK-E 50
Part Number
465.150.000.000
View details
|
| HSK-A/C/E 63 + B/D/F 80 Runout Arbor |
346 mm |
40 mm |
HSK-A 63, HSK-C 63, HSK-E 63 |
465.163.000.000
|
HSK-A/C/E 63 + B/D/F 80 Runout Arbor
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
346 mm
Diameter (D)
40 mm
Compatible With Spindles
HSK-A 63, HSK-C 63, HSK-E 63
Part Number
465.163.000.000
View details
|
| HSK-A/C/E 80 Runout Arbor |
346 mm |
40 mm |
HSK-A 80, HSK-C 80, HSK-E 80 |
465.180.000.000
|
HSK-A/C/E 80 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
346 mm
Diameter (D)
40 mm
Compatible With Spindles
HSK-A 80, HSK-C 80, HSK-E 80
Part Number
465.180.000.000
View details
|
| HSK-A/C 100 Runout Arbor |
349 mm |
40 mm |
HSK-A 100, HSK-C 100, HSK-E 100 |
465.190.000.000
|
HSK-A/C 100 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
349 mm
Diameter (D)
40 mm
Compatible With Spindles
HSK-A 100, HSK-C 100, HSK-E 100
Part Number
465.190.000.000
View details
|
| HSK-A 125 Runout Arbor |
349 mm |
40 mm |
HSK-A 125, HSK-C 125, HSK-E 125 |
465.192.000.000
|
HSK-A 125 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
349 mm
Diameter (D)
40 mm
Compatible With Spindles
HSK-A 125, HSK-C 125, HSK-E 125
Part Number
465.192.000.000
View details
|
| HSK-A 160 Runout Arbor |
400 mm |
40 mm |
HSK-A 160, HSK-C 160, HSK-E 160 |
465.196.000.000
|
HSK-A 160 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
400 mm
Diameter (D)
40 mm
Compatible With Spindles
HSK-A 160, HSK-C 160, HSK-E 160
Part Number
465.196.000.000
View details
|
| HSK-F 63 Runout Arbor |
346 mm |
40 mm |
HSK-F 63 |
465.663.000.000
|
HSK-F 63 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
346 mm
Diameter (D)
40 mm
Compatible With Spindles
HSK-F 63
Part Number
465.663.000.000
View details
|
| HSK-F 63 Runout Arbor |
150 mm |
40 mm |
HSK-F 63 |
465.663.040.150
|
HSK-F 63 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
150 mm
Diameter (D)
40 mm
Compatible With Spindles
HSK-F 63
Part Number
465.663.040.150
View details
|
| HSK-F 63 Runout Arbor |
250 mm |
40 mm |
HSK-F 63 |
465.663.040.250
|
HSK-F 63 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
250 mm
Diameter (D)
40 mm
Compatible With Spindles
HSK-F 63
Part Number
465.663.040.250
View details
|
| HSK-F 80 Runout Arbor |
346 mm |
50 mm |
HSK-F 80 |
465.680.000.000
|
HSK-F 80 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
346 mm
Diameter (D)
50 mm
Compatible With Spindles
HSK-F 80
Part Number
465.680.000.000
View details
|
| HSK-B 80 Runout Arbor |
245 mm |
50 mm |
HSK-B 80 |
465.280.000.000
|
HSK-B 80 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
245 mm
Diameter (D)
50 mm
Compatible With Spindles
HSK-B 80
Part Number
465.280.000.000
View details
|
| HSK-A/C/E 63 + B/D/F 80 Runout Arbor |
150 mm |
40 mm |
HSK-A 63, HSK-C 63, HSK-E 63 |
465.163.040.150
|
HSK-A/C/E 63 + B/D/F 80 Runout Arbor
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
150 mm
Diameter (D)
40 mm
Compatible With Spindles
HSK-A 63, HSK-C 63, HSK-E 63
Part Number
465.163.040.150
View details
|
| HSK-A/C 100 Runout Arbor |
500 mm |
50 mm |
HSK-A 100, HSK-C 100, HSK-E 100 |
465.190.050.500
|
HSK-A/C 100 Runout Arbor
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
Length (L)
500 mm
Diameter (D)
50 mm
Compatible With Spindles
HSK-A 100, HSK-C 100, HSK-E 100
Part Number
465.190.050.500
View details
|
