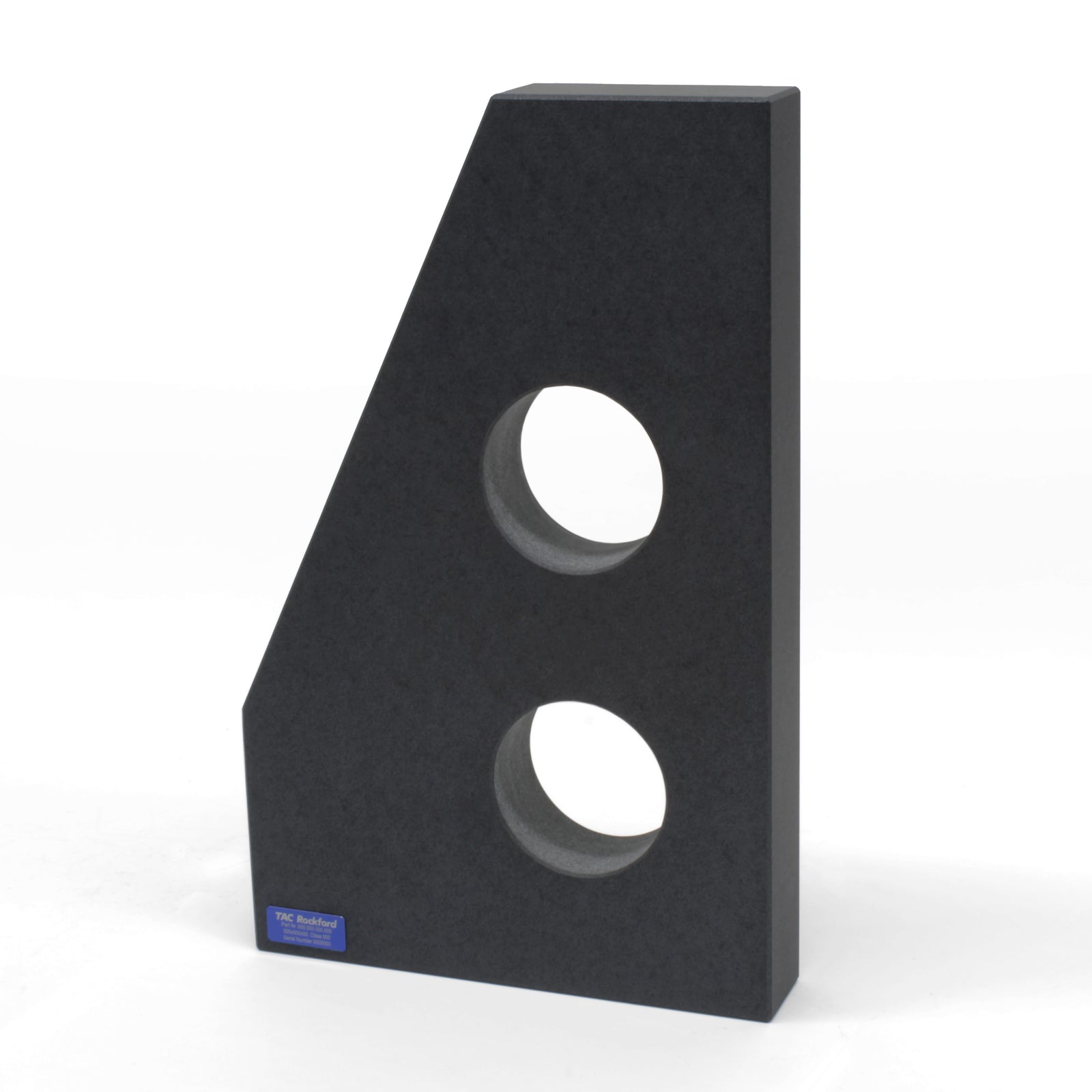

Master Triangular Square, Granite

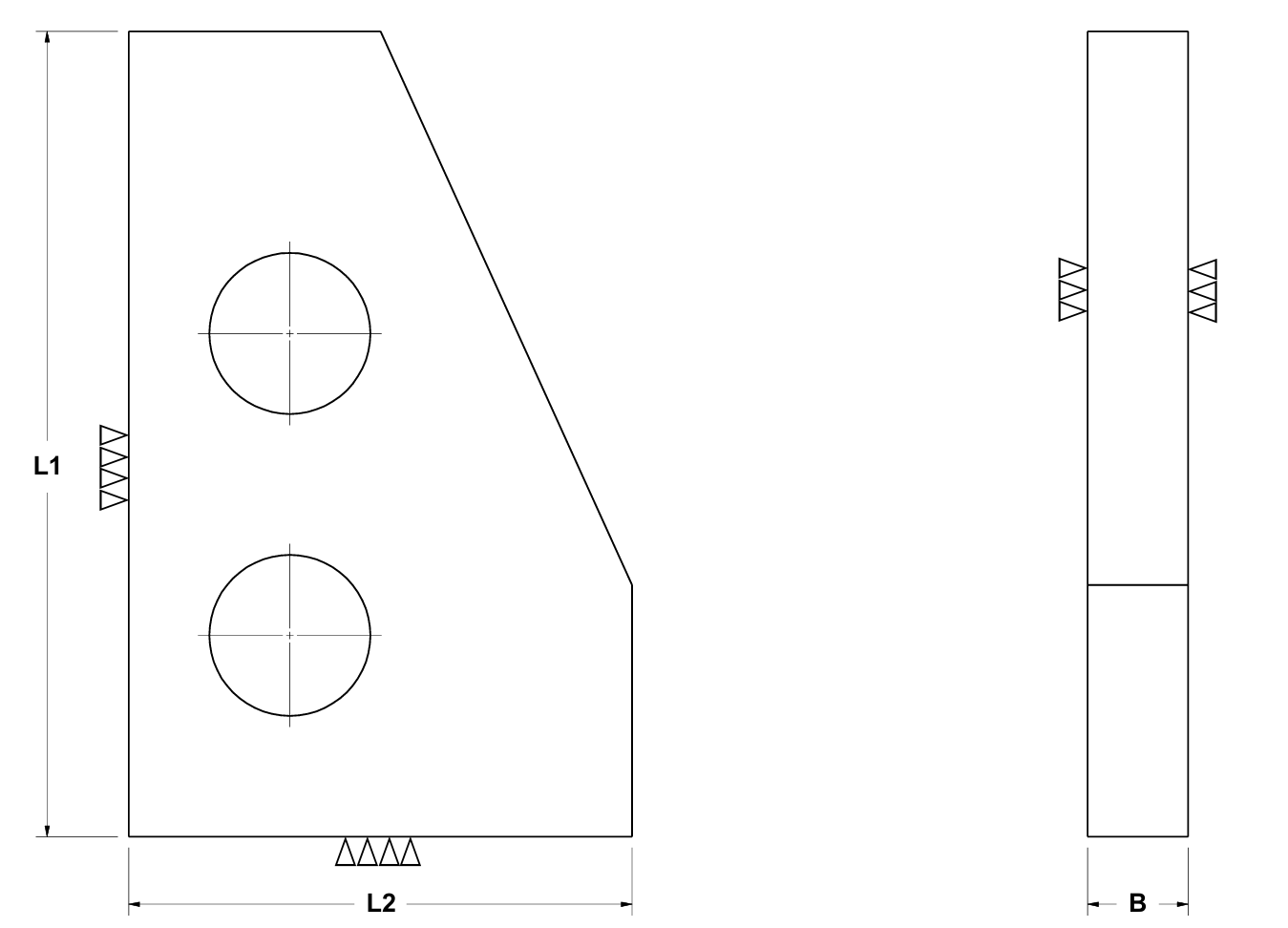

Master Triangular Square, Granite Datasheet

Filter

L1 (mm)

L2 (mm)

B (mm)

Class

Flatness ⏥

Perpendicularity ⟂

Net Kg

Master Triangular Square, Granite	L1 (mm)	L2 (mm)	B (mm)	Class	Flatness ⏥	Perpendicularity ⟂	Net Kg	Part Number
200 x 150	200	150	30	000	2.4 µm	1.0 µm	2.2	451.2G3.200.150.030
200 x 150 Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes. L1 (mm) 200 L2 (mm) 150 B (mm) 30 Class 000 Flatness ⏥ 2.4 µm Perpendicularity ⟂ 1.0 µm Net Kg 2.2 Part Number 451.2G3.200.150.030 View details
300 x 200	300	200	40	000	2.6 µm	1.5 µm	5.4	451.2G3.300.200.040
300 x 200 Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes. L1 (mm) 300 L2 (mm) 200 B (mm) 40 Class 000 Flatness ⏥ 2.6 µm Perpendicularity ⟂ 1.5 µm Net Kg 5.4 Part Number 451.2G3.300.200.040 View details
400 x 250	400	250	50	000	2.8 µm	2.0 µm	11	451.2G3.400.250.050
400 x 250 Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes. L1 (mm) 400 L2 (mm) 250 B (mm) 50 Class 000 Flatness ⏥ 2.8 µm Perpendicularity ⟂ 2.0 µm Net Kg 11 Part Number 451.2G3.400.250.050 View details
500 x 315	500	315	60	000	3.0 µm	2.5 µm	21	451.2G3.500.315.060
500 x 315 Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes. L1 (mm) 500 L2 (mm) 315 B (mm) 60 Class 000 Flatness ⏥ 3.0 µm Perpendicularity ⟂ 2.5 µm Net Kg 21 Part Number 451.2G3.500.315.060 View details
630 x 400	630	400	60	000	3.2 µm	3.2 µm	35	451.2G3.630.400.060
630 x 400 Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes. L1 (mm) 630 L2 (mm) 400 B (mm) 60 Class 000 Flatness ⏥ 3.2 µm Perpendicularity ⟂ 3.2 µm Net Kg 35 Part Number 451.2G3.630.400.060 View details
800 x 400	800	500	80	000	3.6 µm	4.0 µm	67	451.2G3.800.500.080
800 x 400 Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes. L1 (mm) 800 L2 (mm) 500 B (mm) 80 Class 000 Flatness ⏥ 3.6 µm Perpendicularity ⟂ 4.0 µm Net Kg 67 Part Number 451.2G3.800.500.080 View details
1000 x 630	1000	630	100	000	4.0 µm	5.0 µm	128	451.2G3.1000.630.100
1000 x 630 Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes. L1 (mm) 1000 L2 (mm) 630 B (mm) 100 Class 000 Flatness ⏥ 4.0 µm Perpendicularity ⟂ 5.0 µm Net Kg 128 Part Number 451.2G3.1000.630.100 View details
1200 x 800	1200	800	140	000	4.4 µm	6.0 µm	277	451.2G3.1200.800.140
1200 x 800 Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes. L1 (mm) 1200 L2 (mm) 800 B (mm) 140 Class 000 Flatness ⏥ 4.4 µm Perpendicularity ⟂ 6.0 µm Net Kg 277 Part Number 451.2G3.1200.800.140 View details
1500 x 1000	1500	1000	160	000	5.0 µm	7.5 µm	524	451.2G3.1500.1000.160
1500 x 1000 Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes. L1 (mm) 1500 L2 (mm) 1000 B (mm) 160 Class 000 Flatness ⏥ 5.0 µm Perpendicularity ⟂ 7.5 µm Net Kg 524 Part Number 451.2G3.1500.1000.160 View details
