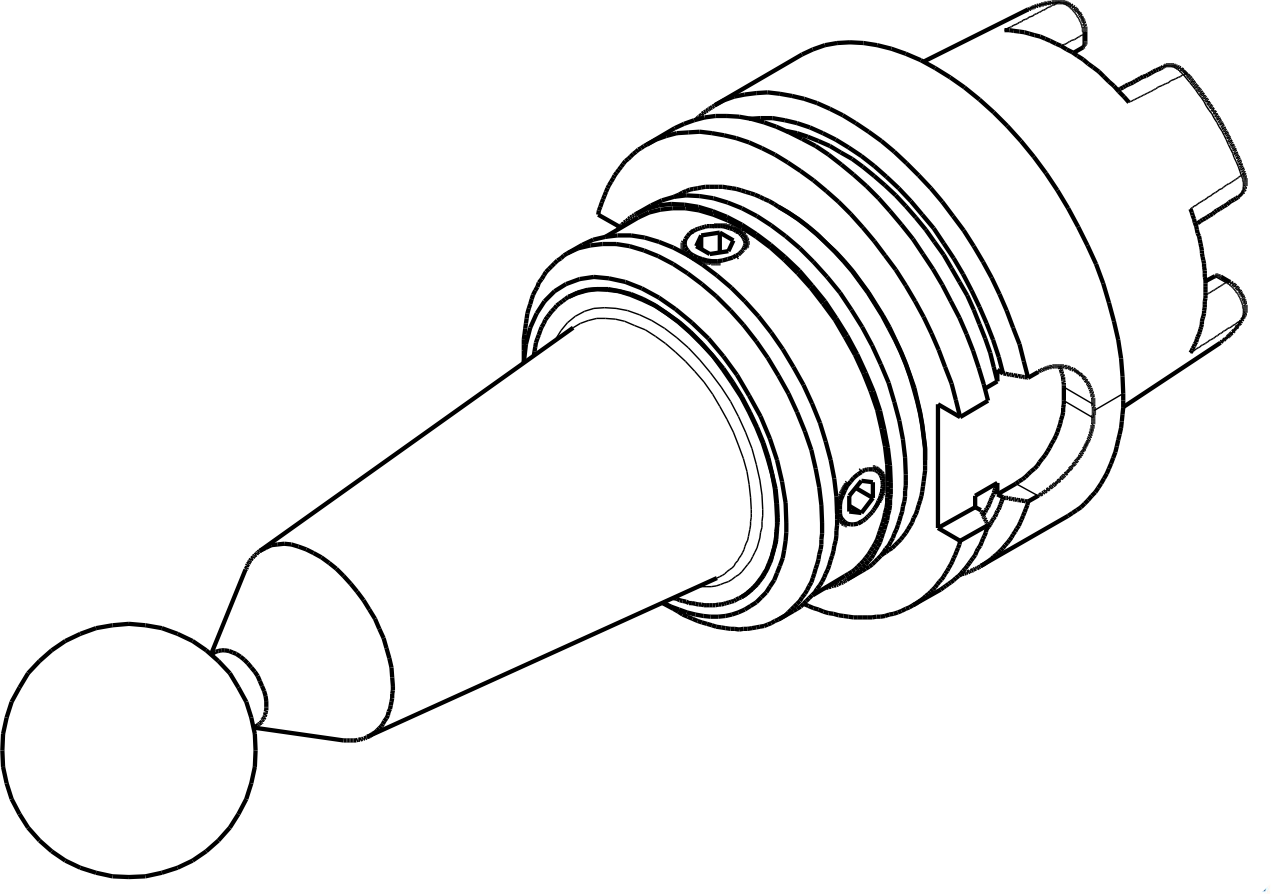

HSK Precision Ball-End Arbors (467.100)
Our 467 precision version feature an adjustment mechanism which allows for improved accuracy when compared to our standard 466 ball arbors.

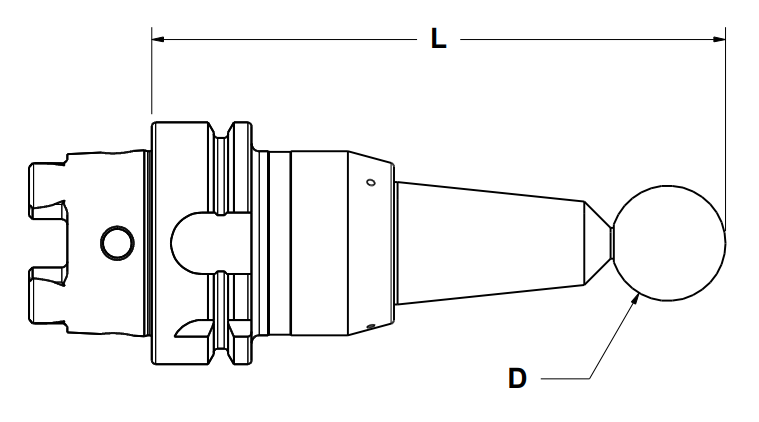

| Ball-End Runout Arbor | Length (L) | Ball Dia. (D) | Runout | Standard | Part number |
|---|---|---|---|---|---|
|
Ball-End Runout Arbor, HSK-A/C/E 32 + B/D/F 40
|
150 mm | 30 mm | <0.005 mm | DIN69893/ISO12164/ASME B5.62 | 467.132.000.000 |
Ball-End Runout Arbor, HSK-A/C/E 32 + B/D/F 40Our 467 precision version features an adjustment mechanism which allows for improved accuracy when compared to our standard 466 ball arbors.
Length (L)
150 mm
Ball Dia. (D)
30 mm
Runout
<0.005 mm
Standard
DIN69893/ISO12164/ASME B5.62
Part number
467.132.000.000
|
|||||
|
Ball-End Runout Arbor, HSK-A/C/E 40 + B/D/F 50
|
150 mm | 30 mm | <0.005 mm | DIN69893/ISO12164/ASME B5.62 | 467.140.000.000 |
Ball-End Runout Arbor, HSK-A/C/E 40 + B/D/F 50Our 467 precision version features an adjustment mechanism which allows for improved accuracy when compared to our standard 466 ball arbors.
Length (L)
150 mm
Ball Dia. (D)
30 mm
Runout
<0.005 mm
Standard
DIN69893/ISO12164/ASME B5.62
Part number
467.140.000.000
|
|||||
|
Ball-End Runout Arbor, HSK-A/C/E 50 + B/D
|
150 mm | 30 mm | <0.005 mm | DIN69893/ISO12164/ASME B5.62 | 467.150.000.000 |
Ball-End Runout Arbor, HSK-A/C/E 50 + B/DOur 467 precision version features an adjustment mechanism which allows for improved accuracy when compared to our standard 466 ball arbors.
Length (L)
150 mm
Ball Dia. (D)
30 mm
Runout
<0.005 mm
Standard
DIN69893/ISO12164/ASME B5.62
Part number
467.150.000.000
|
|||||
|
Ball-End Runout Arbor, HSK-A/C/E 63 + B/D/F 80
|
150 mm | 30 mm | <0.005 mm | DIN69893/ISO12164/ASME B5.62 | 467.163.000.000 |
Ball-End Runout Arbor, HSK-A/C/E 63 + B/D/F 80Our 467 precision version features an adjustment mechanism which allows for improved accuracy when compared to our standard 466 ball arbors.
Length (L)
150 mm
Ball Dia. (D)
30 mm
Runout
<0.005 mm
Standard
DIN69893/ISO12164/ASME B5.62
Part number
467.163.000.000
|
|||||
|
Ball-End Runout Arbor, HSK-A/C 80
|
150 mm | 30 mm | <0.005 mm | DIN69893/ISO12164/ASME B5.62 | 467.180.000.000 |
Ball-End Runout Arbor, HSK-A/C 80Our 467 precision version features an adjustment mechanism which allows for improved accuracy when compared to our standard 466 ball arbors.
Length (L)
150 mm
Ball Dia. (D)
30 mm
Runout
<0.005 mm
Standard
DIN69893/ISO12164/ASME B5.62
Part number
467.180.000.000
|
|||||
|
Ball-End Runout Arbor, HSK-A/C 100
|
150 mm | 30 mm | <0.005 mm | DIN69893/ISO12164/ASME B5.62 | 467.190.000.000 |
Ball-End Runout Arbor, HSK-A/C 100Our 467 precision version features an adjustment mechanism which allows for improved accuracy when compared to our standard 466 ball arbors.
Length (L)
150 mm
Ball Dia. (D)
30 mm
Runout
<0.005 mm
Standard
DIN69893/ISO12164/ASME B5.62
Part number
467.190.000.000
|
|||||
|
Ball-End Runout Arbor, HSK-A 125
|
150 mm | 30 mm | <0.005 mm | DIN69893/ISO12164/ASME B5.62 | 467.192.000.000 |
Ball-End Runout Arbor, HSK-A 125Our 467 precision version features an adjustment mechanism which allows for improved accuracy when compared to our standard 466 ball arbors.
Length (L)
150 mm
Ball Dia. (D)
30 mm
Runout
<0.005 mm
Standard
DIN69893/ISO12164/ASME B5.62
Part number
467.192.000.000
|
|||||
|
Ball-End Runout Arbor, HSK-F 63
|
150 mm | 30 mm | <0.005 mm | DIN69893/ISO12164/ASME B5.62 | 467.663.000.000 |
Ball-End Runout Arbor, HSK-F 63Our 467 precision version features an adjustment mechanism which allows for improved accuracy when compared to our standard 466 ball arbors.
Length (L)
150 mm
Ball Dia. (D)
30 mm
Runout
<0.005 mm
Standard
DIN69893/ISO12164/ASME B5.62
Part number
467.663.000.000
|
|||||
|
Ball-End Runout Arbor, HSK-F 80
|
150 mm | 30 mm | <0.005 mm | Makino HSK Flange-Pin Spindles | 467.680.000.000 |
Ball-End Runout Arbor, HSK-F 80Our 467 precision version features an adjustment mechanism which allows for improved accuracy when compared to our standard 466 ball arbors.
Length (L)
150 mm
Ball Dia. (D)
30 mm
Runout
<0.005 mm
Standard
Makino HSK Flange-Pin Spindles
Part number
467.680.000.000
|
|||||
