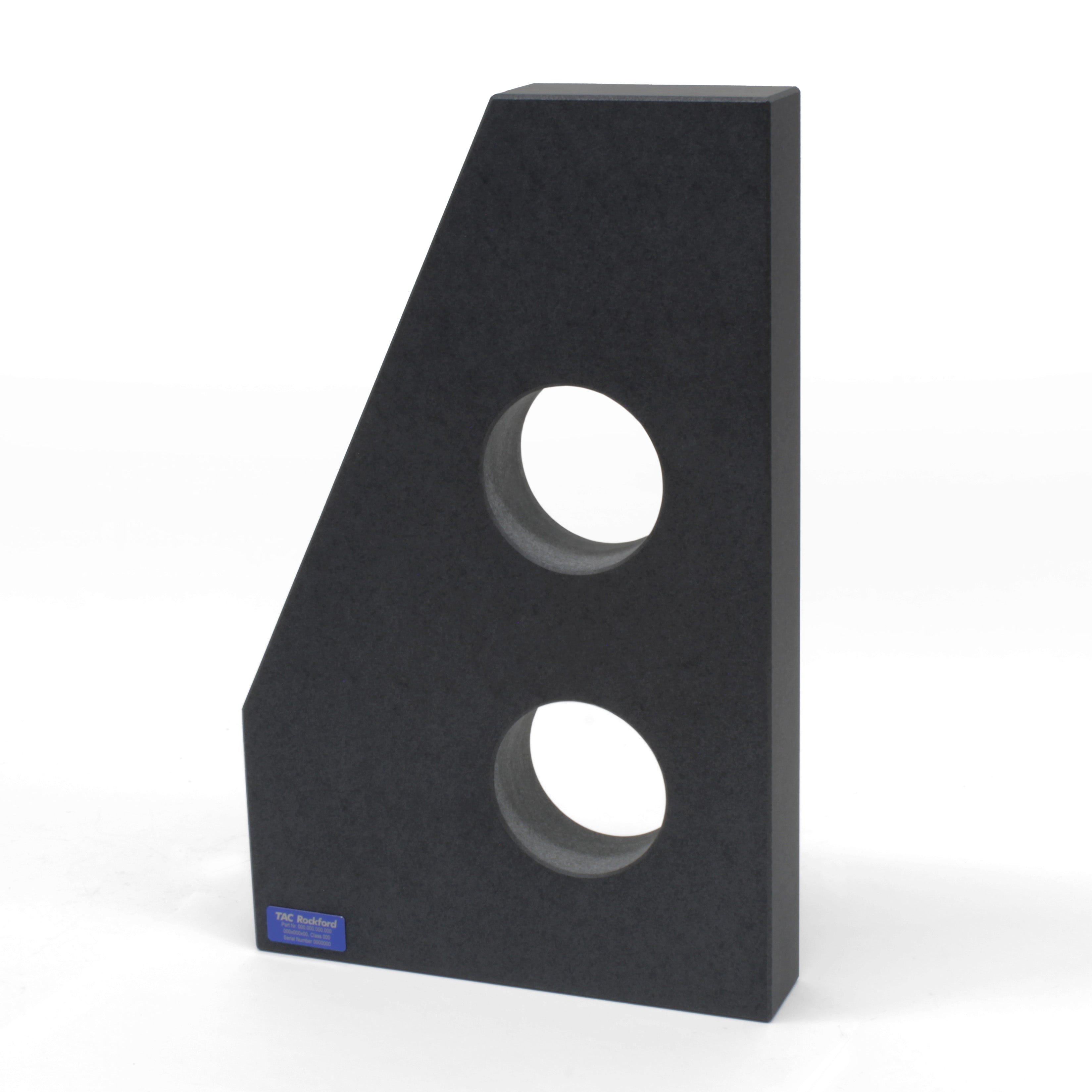

Master Triangular Square, Granite | 200 x 150Part Number 451.2G3.200.150.030
Specifications

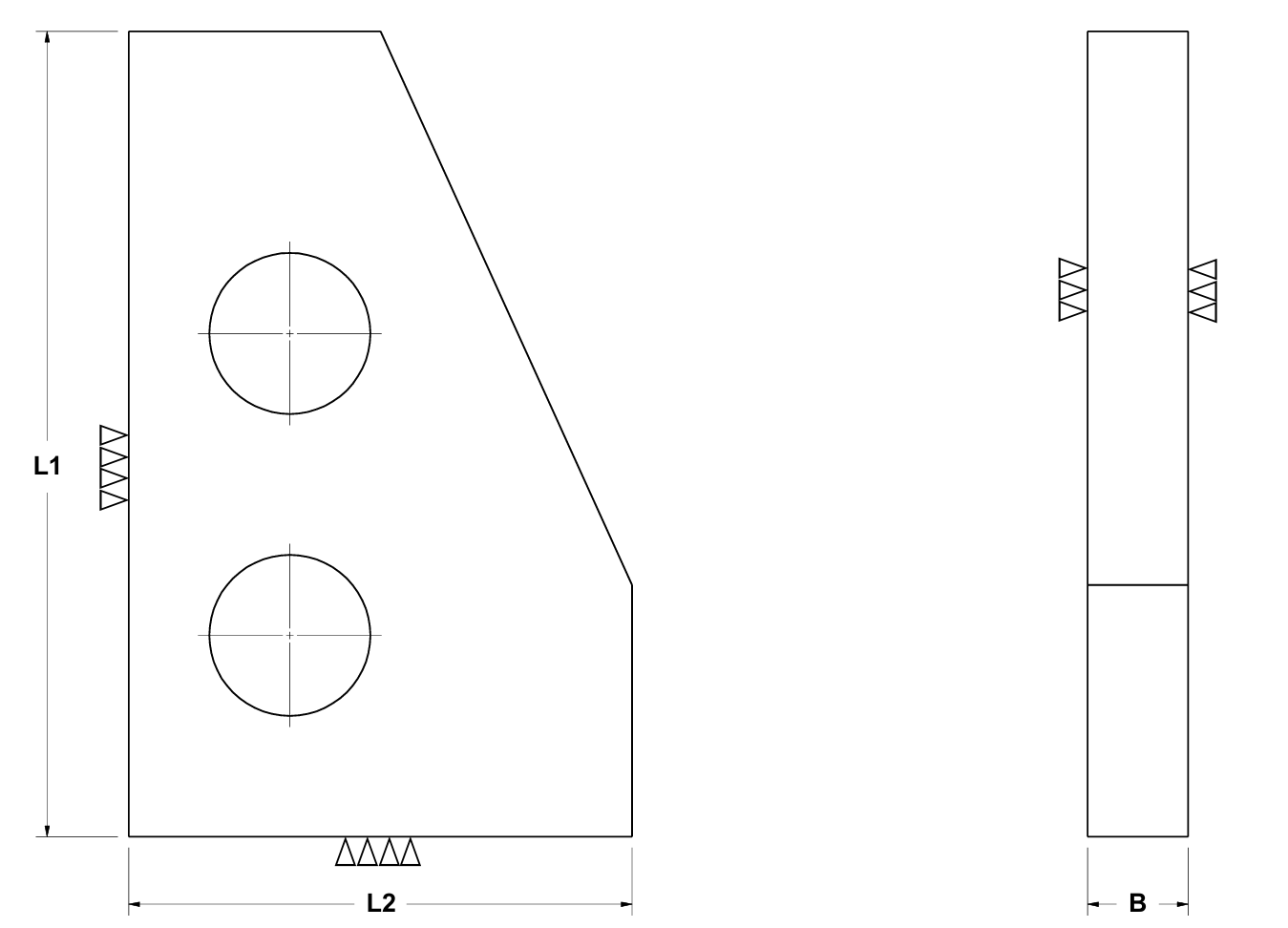

L: 200 L2: 150 B: 30 Class: 000
Flatness ⏥: 2.4 µm
Perpendicularity⟂: 1.0 µm
Net Kg: 2.2
- Type Master Triangular Square, Granite
- Part Number 451.2G3.200.150.030
TAC Messtechnik Contact Details
Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes.
Master Triangular Square, Granite
Improve and verify machine tool accuracy with our high-precision Master Tri Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity. Available in Grade 000 and custom sizes.
-
451.2G3.200.150.030
-
451.2G3.300.200.040
-
451.2G3.400.250.050
-
451.2G3.500.315.060
-
451.2G3.630.400.060
-
451.2G3.800.500.080
-
451.2G3.1000.630.100
-
451.2G3.1200.800.140
-
451.2G3.1500.1000.160
