Master Rectangular Square, Granite | 1000 x 500Part Number 451.4G2.1000.500.080
Specifications

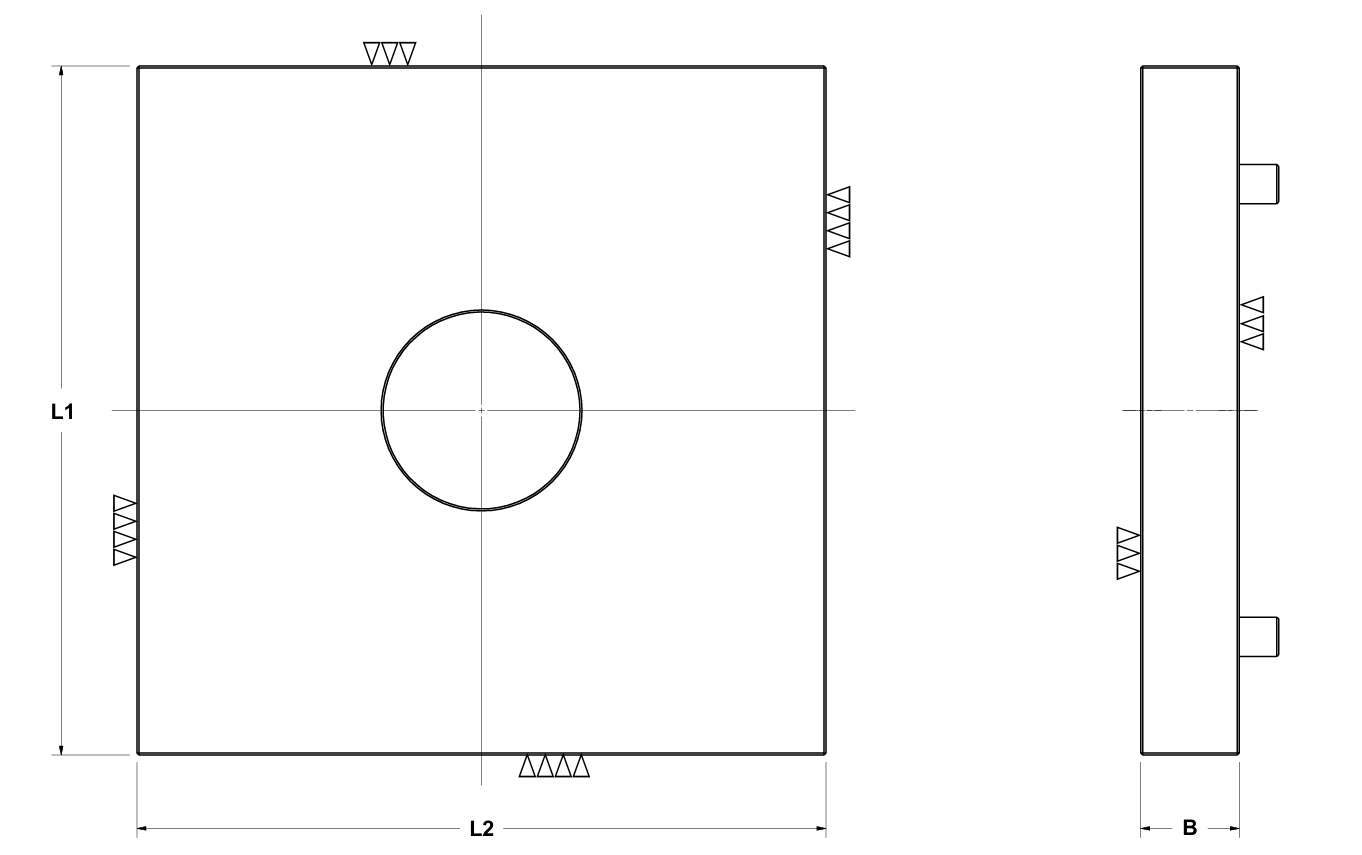

L: 1000 L2: 500 B: 80 Class: 00
Flatness ⏥: 4.0 µm
Perpendicularity⟂: 5.0 µm
Net Kg: 105
- Type Granite 4-Sided Square
- Part Number 451.4G2.1000.500.080
TAC Messtechnik Contact Details
Maximize your inspection efficiency with our 4-Sided Granite Squares. Unlike standard squares, the four finished faces allow for versatile measurement of multiple axes without repositioning the master. Crafted from dense, stable black granite and lapped to Grade 00 tolerances, these squares provide the ultimate reference for verifying machine tool squareness and alignment.

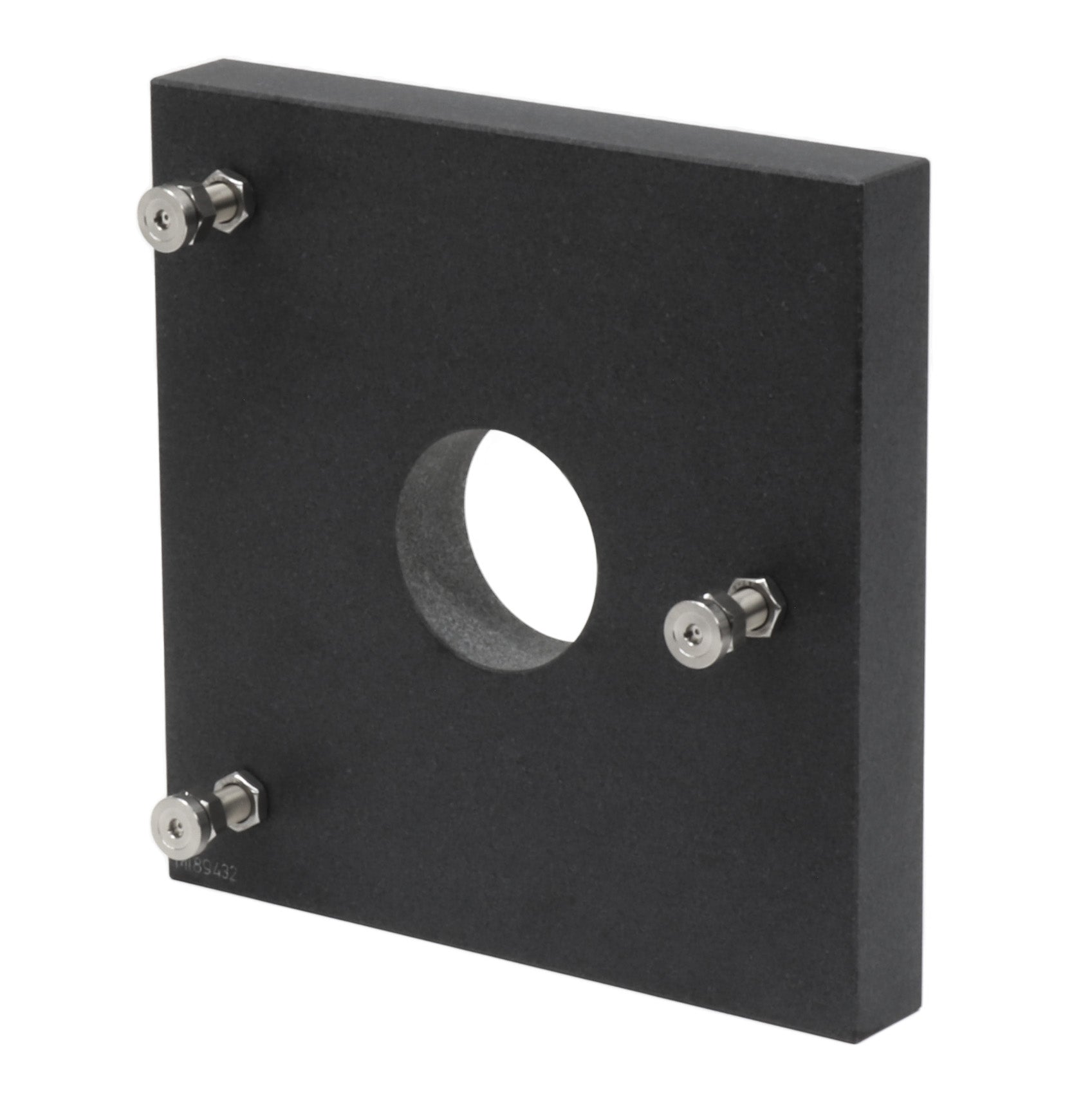

Master Rectangular Square, Granite
Improve and verify machine tool accuracy with our high-precision Granite Squares. Manufactured to ISO 8512-2 standards, these laboratory-grade squares feature lapped measuring faces for superior perpendicularity and parallelism. Available in Grade 00 and custom sizes.
-
451.4G2.250.250.040
-
451.4G2.350.350.050
-
451.4G2.500.250.050
-
451.4G2.500.500.050
-
451.4G2.750.350.060
-
451.4G2.750.750.060
-
451.4G2.1000.500.080
-
451.4G2.1000.1000.080
