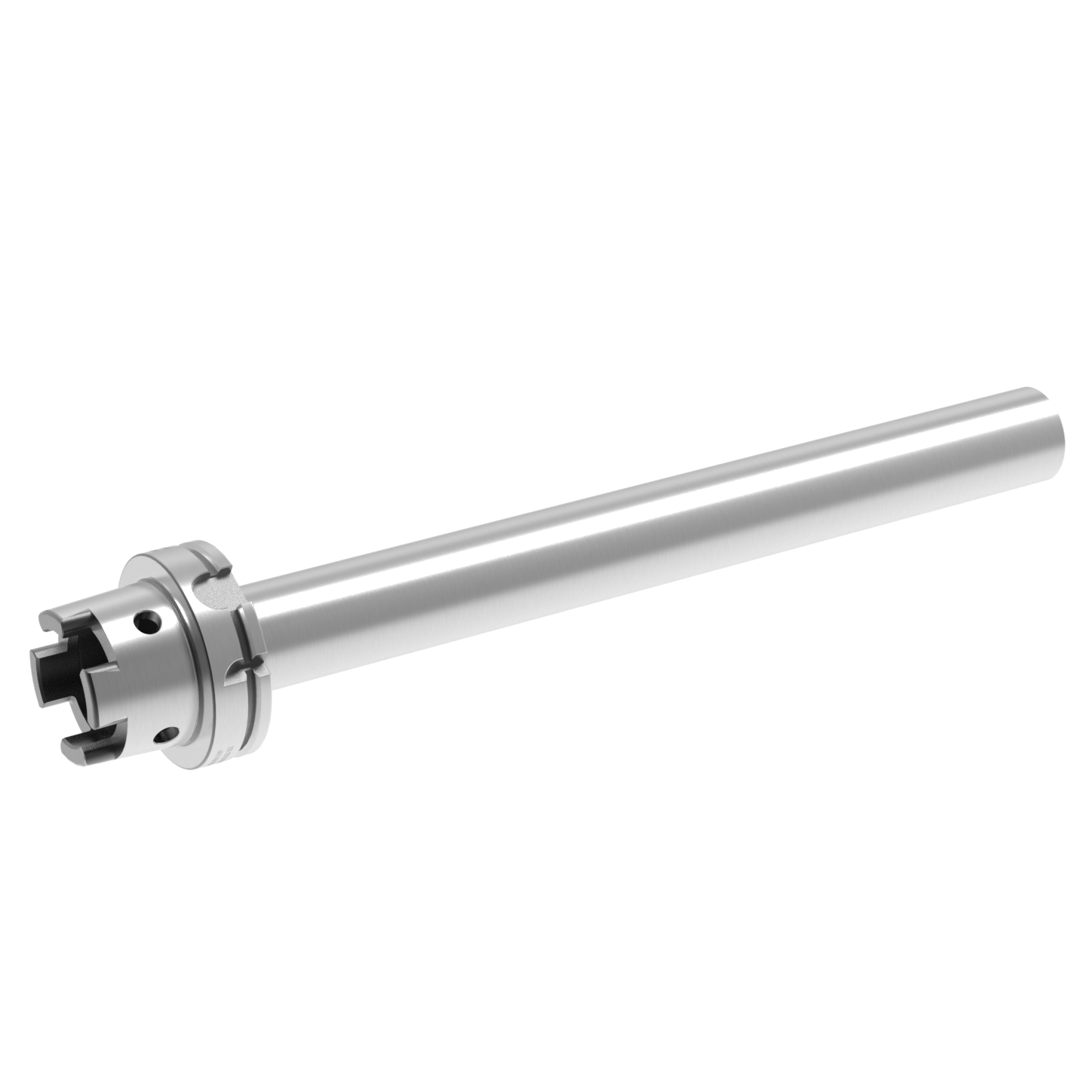

HSK-A/C 100 Runout Arbor
Specifications
Length: 500 mm
Diameter: 50 mm
Compatible With:
HSK-A 100, HSK-C 100, HSK-E 100
- Part Number 465.190.050.500
TAC Messtechnik Contact Details
- Maximum runout error 0.003mm / 3 micron / 0.00012 inch.
- Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
- A certificate of accuracy is included. Traceable certificates available; contact us for details.
- Contact us for other lengths, tapers, and other special requirements.
HSK Runout Arbors (465.100)
Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check.
Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, PSC, Morse, and others.
-
465.100
-
465.125.000.000
-
465.140.000.000
-
465.150.000.000
-
465.163.000.000
-
465.180.000.000
-
465.190.000.000
-
465.192.000.000
-
465.196.000.000
-
465.663.000.000
