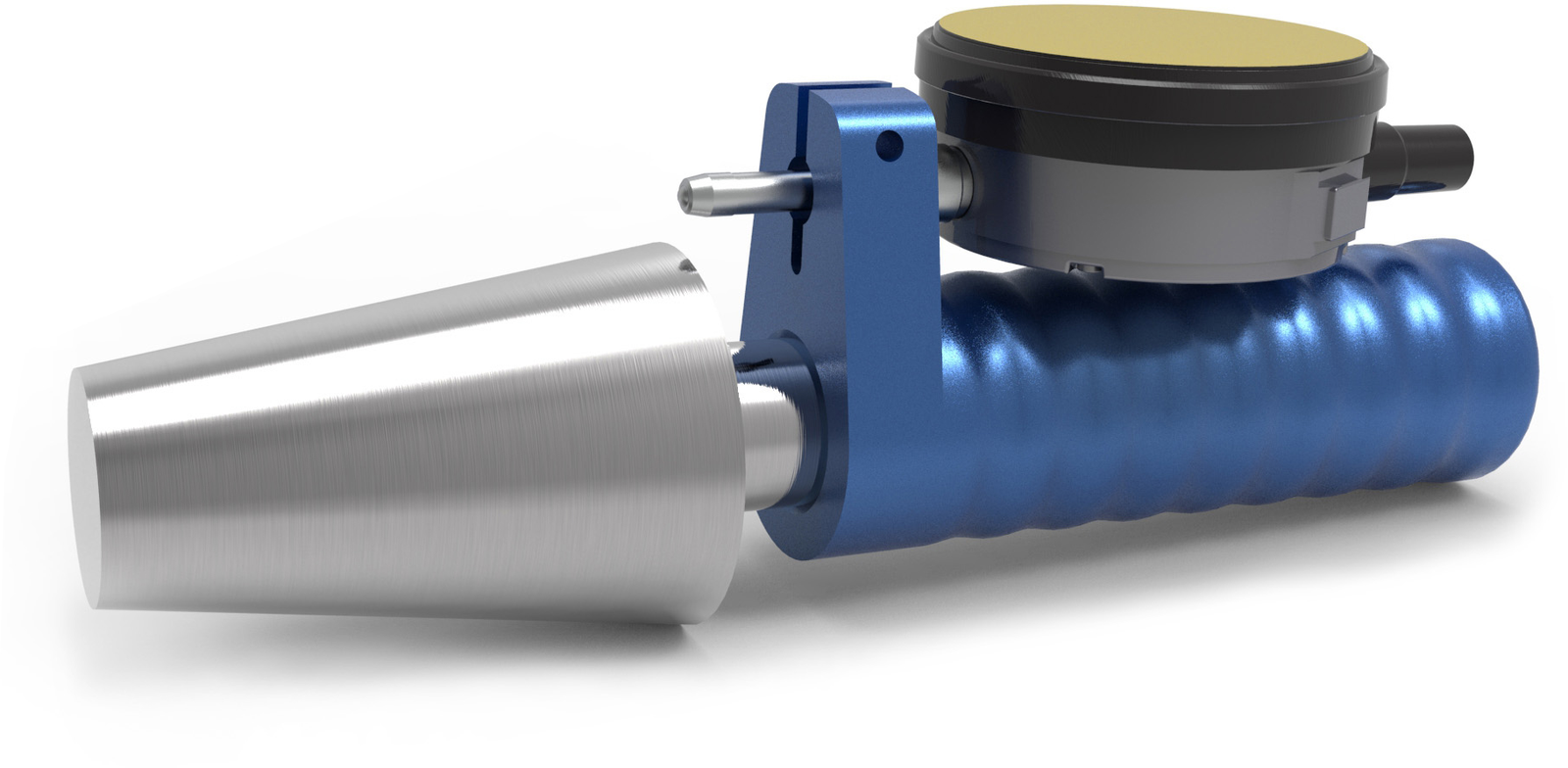

Steep Taper Spindle Taper Dial Indicator Gauge

TAC Rockford's steep taper spindle gauge is designed to verify and measure correct location of the spindle gauge line.

Not included are an indicator and taper master.

The gauge can be used with any dial indicator with an 8mm stem. Recommended available options:

Part Nr. 499.220.150
- 0.01mm Resolution
Part Nr. 499.220.151
- 0.001mm Resolution
Part Nr. 499.220.155
- 0.00005" Resolution

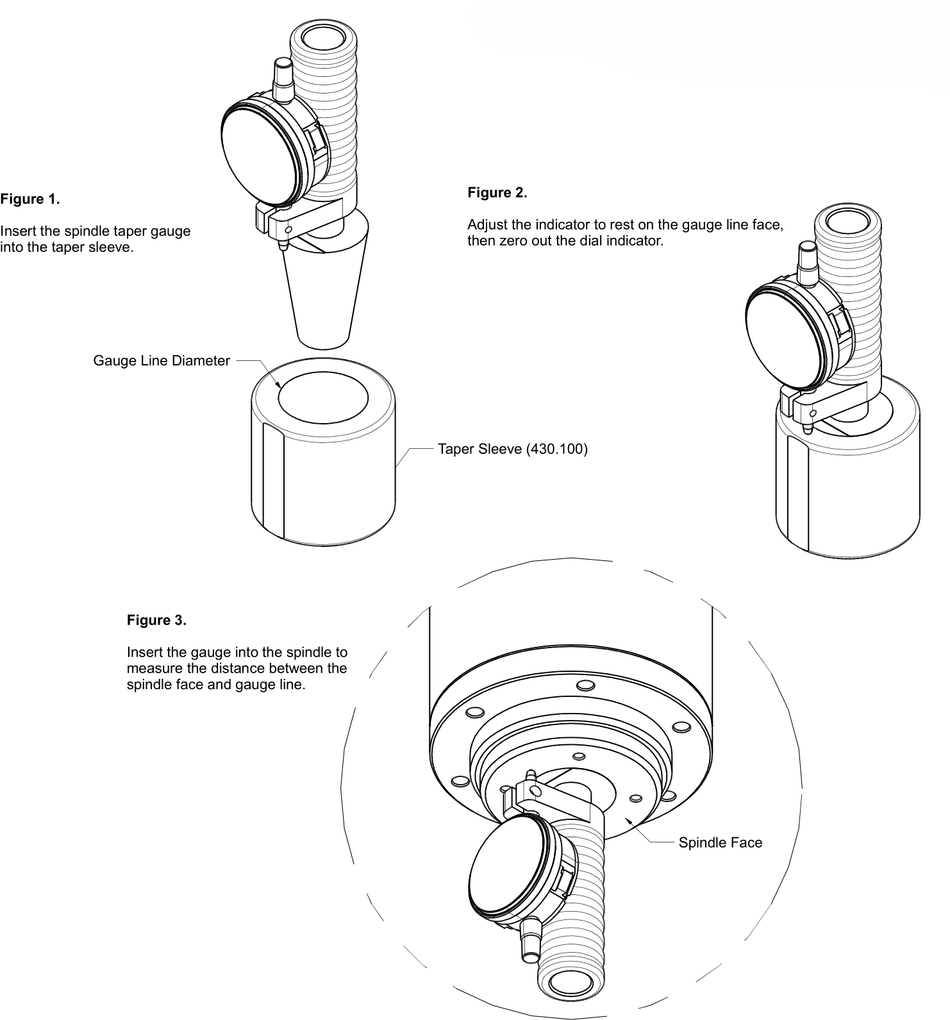

In addition, we strongly recommend a 430.110 series Taper Sleeve Gauge to zero the indicator.

Steep Taper Spindle Taper Dial Indicator Gauge

7 products

Select a row to view full details

Part number
